BP8858 BMS TESTER
Application scope
This device is suitable for:
Test the function indication parameters of the power battery protection board, which is applicable to testing lithium iron phosphate battery board, ternary battery board, sodium battery and solid state battery.
Product characteristics
1，It has many performances such as test overcharge，overcharge recovery，overdischarge recovery，overcurrent recovery，internal resistance，self-consumption，short circuit protection，overcharge protection time，overcurrent protection time，overdischarge protection time，etc. |
| 2.High test speed and high test accuracy.A quick test of a board takes about 4 seconds. |
3.Equipped with powerful peripheral software，through the industrial control standard 232 interface，you can collect instrument data at any time，save data，print data，so that you can use it with or without computer connection. |
| 4.Scan code to search for data. |
| Can be customized：①M(fèi)ES connection function：②Active Equalization Function：③485 communication function：④NTC test：⑤Switch Action Function |
SpeciPcation parameters
| Product name | BMS tester | Overdischarge current protection value | 0-500A±0.1 continuous long-term discharge |

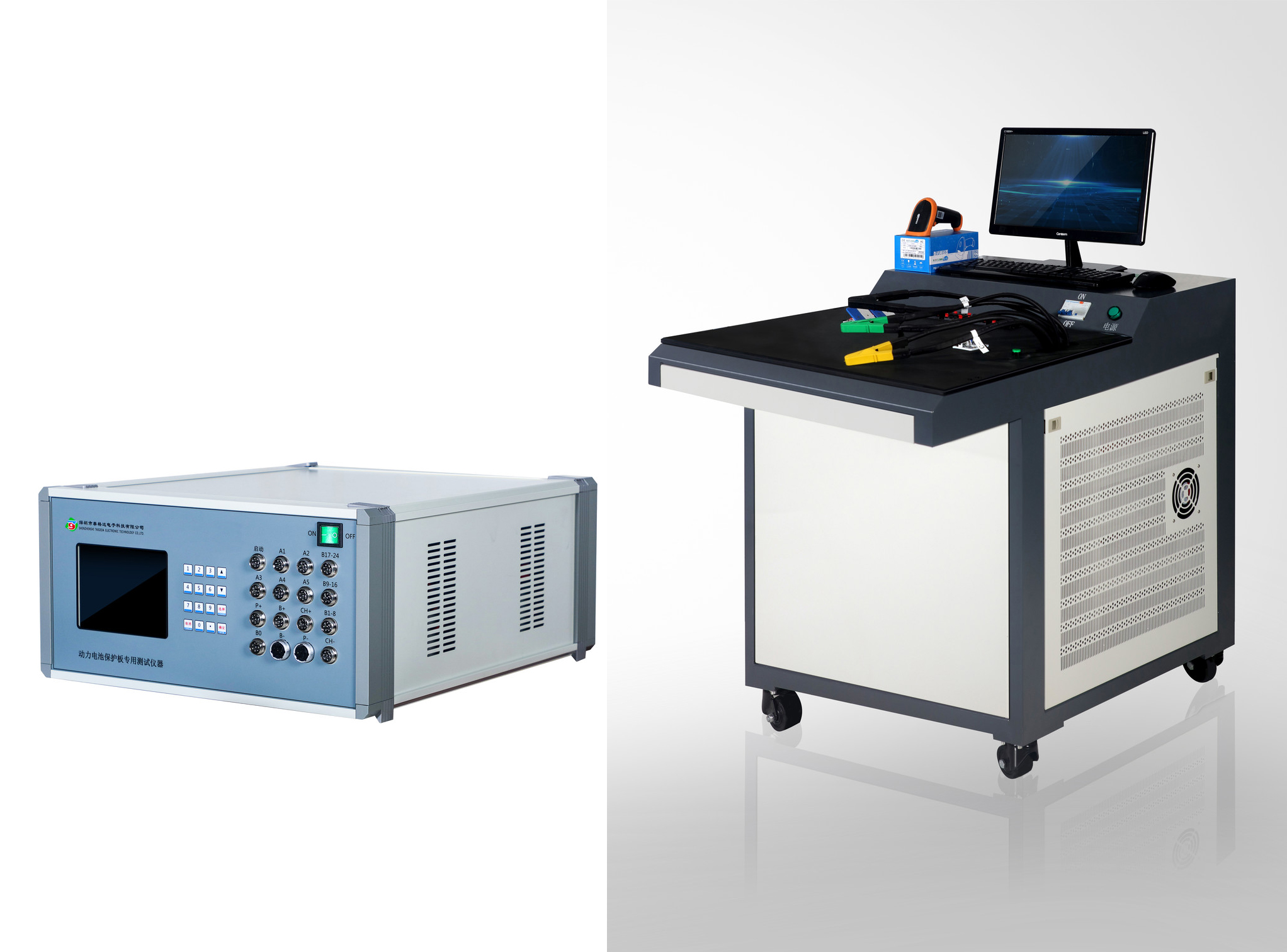

| Model | BP8858 Desktop/Cabinet type | Overcurrent protection delay | 0-10S+1mS |
| Chassis size | Desktop H：215mm、L：539mm、W：439mm Cabinet type H：1195mm、L：990mm、W：670mm | short circuit protection | 400A（The maximum sustained 10mS） |
| Equipment weight | Desktop≈25KG Cabinet type≈156KG | short circuit delay protection | 0-10000uS±1uS |
| Operating ambient temperature | 1-50° | Temperature protection | -20°℃ ~100°℃ |
| Input power | AC220V±15% | Equalization function，turn on voltage | 0-5V ±1mV |
| Over-release protection/protection release | 0-5V ±1mV | Internal resistance test of main loop | 0-1000mA±1mA |
| Overcharge current protection value | 0-500A | Total self-consumption test | 0-10000uA±1uA |
| single-section consumable power | 0-100uA±1uA |
